Product Summary

The BYG10Y-E3 is a Standard Avalanche SMD Rectifier. The applications of the BYG10Y-E3 include for using in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication.

Parametrics

BYG10Y-E3 absolute maximum ratings: (1)IF(AV): 1.5A; (2)Maximum repetitive peak reverse voltage:1600V; (3)IFSM: 30A; (4)IR: 1.0μA; (5)VF: 1.15V; (6) ER: 20mJ; (7) TJ max.: 150℃; (8) Operating junction and storage temperature range: -55℃ to +150℃.

Features

BYG10Y-E3 features: (1)Low profile package; (2)Ideal for automated placement; (3)Controlled avalanche characteristics; (4)Glass passivated junction; (5)Low reverse current; (6)High surge current capability; (7)Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃; (8) AEC-Q101 qualified; (9) Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC.

Diagrams

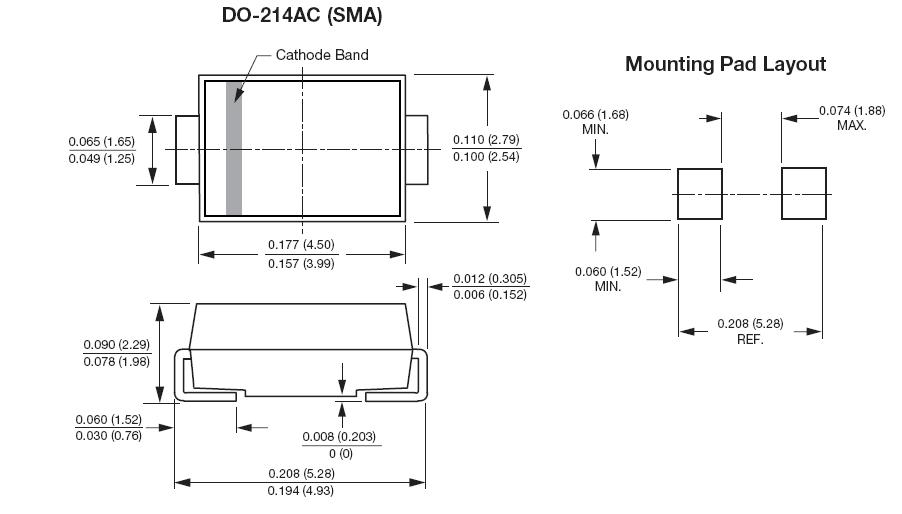

BYG10Y-E3 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

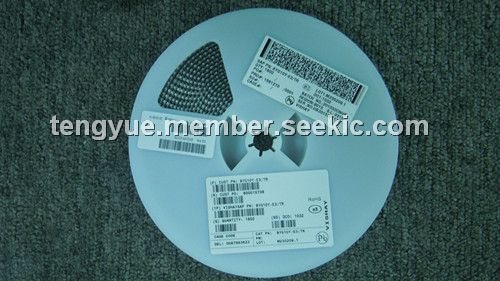

BYG10Y-E3/TR
BYG10Y-E3/TR

Vishay Semiconductors

Rectifiers 1.5 Amp 1600 Volt

Data Sheet

0-1: $0.32
1-50: $0.22
50-100: $0.19
100-500: $0.14
BYG10Y-E3/TR3
BYG10Y-E3/TR3

Vishay Semiconductors

Rectifiers 1.5 Amp 1600 Volt

Data Sheet

0-1: $0.19
1-10: $0.17
10-50: $0.16
50-100: $0.15
