Product Summary

The 10MQ100 is a schottky rectifier. The 10MQ100 surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging, and reverse battery protection.

Parametrics

10MQ100 absolute maximum ratings: (1) IF (AV) Max. Average Forward Current: 1.5A; (2) IFSM Max. Peak One Cycle Non-Repetitive: 120A; (3)Surge Current, TJ =25℃: 30A; (4) EAS Non-Repetitive Avalanche Energy: 1.0mJ; (5) IAR Repetitive Avalanche Current: 0.5A.

Features

10MQ100 features: (1) Small foot print, surface mountable; (2) Low forward voltage drop; (3) High frequency operation; (4) Guard ring for enhanced ruggedness and long term reliability.

Diagrams

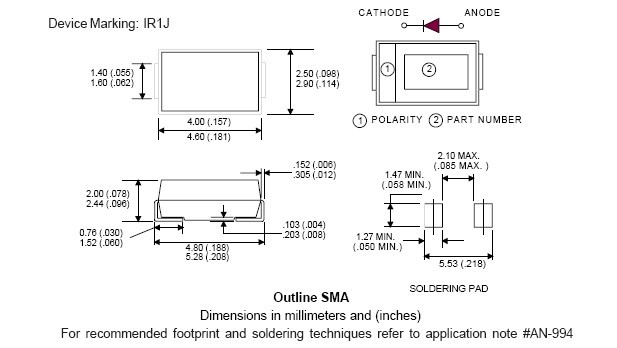

10MQ100 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
10MQ100N
10MQ100N
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 2.1 Amp 100 Volt
Data Sheet
Negotiable
10MQ100NPBF
10MQ100NPBF

DIODE SCHOTTKY 100V 1.5A D64
Data Sheet
0-1: $0.33
1-10: $0.26
10-25: $0.22
25-100: $0.18
100-250: $0.15
250-500: $0.12
500-1000: $0.09
1000-2500: $0.08
2500-5000: $0.08
10MQ100NTR
10MQ100NTR
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 2.1 Amp 100 Volt
Data Sheet
Negotiable
10MQ100NTRPBF
10MQ100NTRPBF

DIODE SCHOTTKY 100V 1.5A SMA
Data Sheet
0-1: $0.37
1-10: $0.29
10-25: $0.24
25-100: $0.20
100-250: $0.16
250-500: $0.14
500-1000: $0.10
1000-2500: $0.09
